Weight with sprocket 485gr size 520

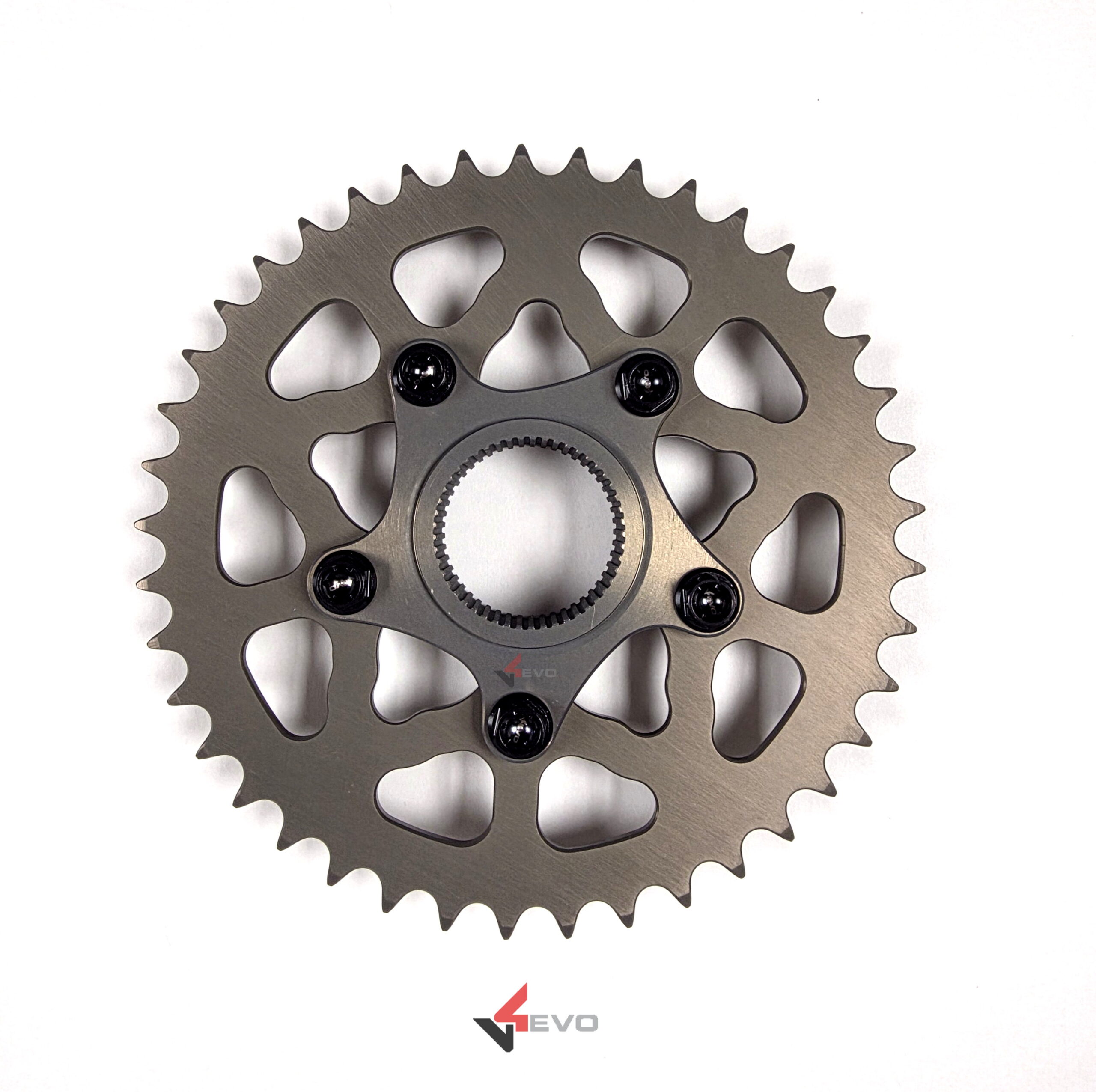

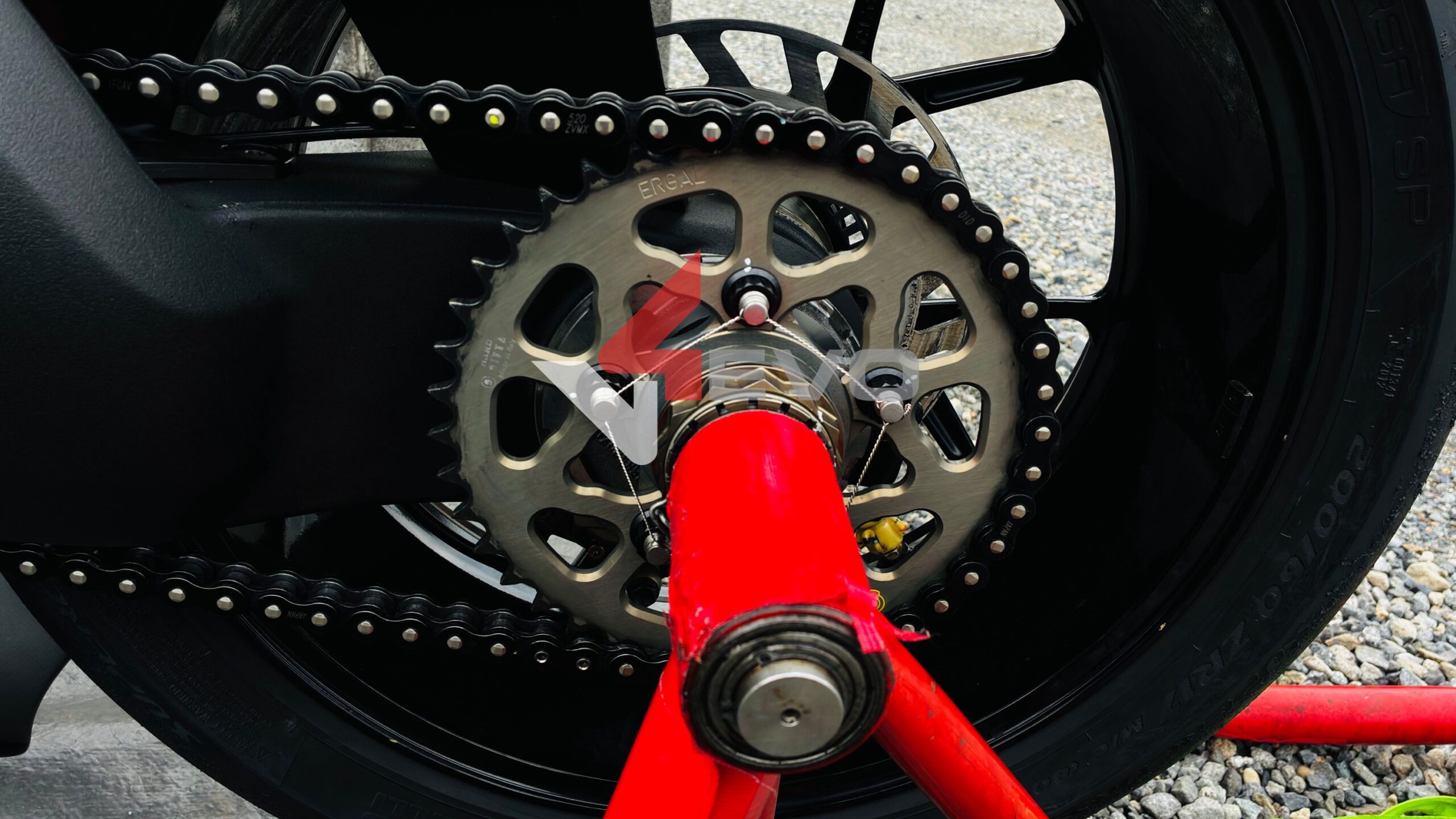

By far the lightest sprocket set up for Ducati single side swing arms, V4X direct drive hub kit

80% lighter than factory assembly. Less than 50% the weight of any racing cush sprocket system. Replacement or spare sprockets are less than 50% the cost of traditional Ducati aftermarket sprockets. Sprockets are consumable so why not enjoy a wider selection with lower reoccurring cost.

Made from certified 7075-T651 Aerospace alloy to ISO 9001 specifications. FEA designed for engine output SAE 150 ftlbs torque.

Includes  Titanium drive hardware with ultra light, high temp/ high torque aircraft locking nuts completing the lightest and most durable combination possible. Fitting Torque is 55nm and suggested direction is nut to the sprocket side.

Your choice of sprocket. If you need help deciding your V4 gearing for your favorite track or target speed, please contact us and we will happily assist you.

Stock gears

Panigale V4 1100cc 16/41 525

Panigale V4R 15/42 525

Multistrada V4 / V4 Pikespeak 16/42 525

Streetfighter V4 15/42 525

Streetfighter V2 15/45 525

Panigale V2 15/43 525

The BLACK option is custom painting Powder Coat
